Product details
Product information

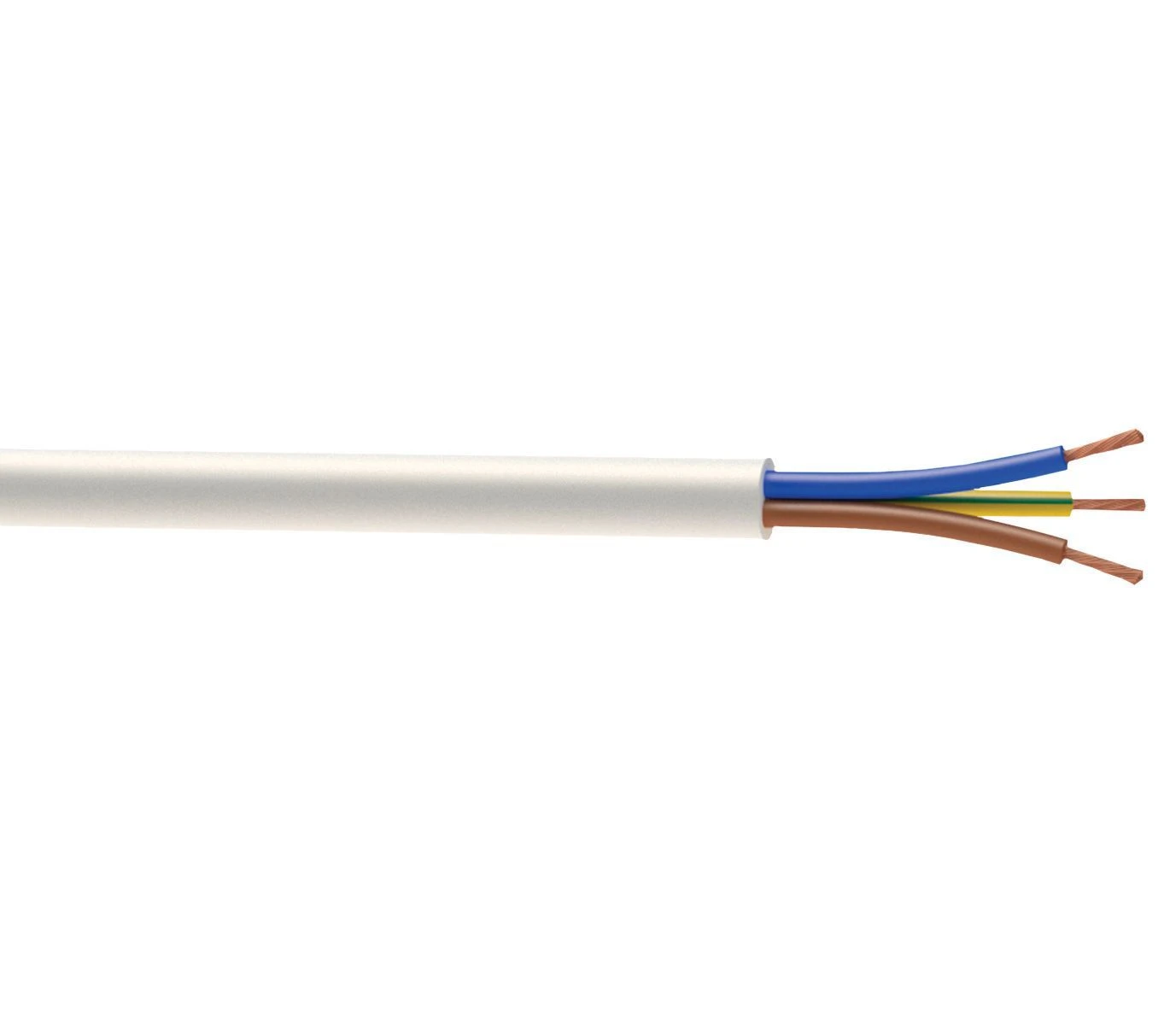

This is a 10m 3 core flexible PVC cable rated at 25A. It has a copper conductor with a cross-sectional area of 2.5mm². The cable is CE and UKCA certified and fire rated, suitable for high temperature applications up to 90°C. The cable has 3 cores plus an additional core for the circuit protective conductor. It is unshielded and comes in a coil, with a PVC outer sheath in white. The cable can be cut to length as needed. This high quality, robust yet flexible cable provides a reliable power connection and is guaranteed for 1 year.
Features and benefits
- Heat resistant
- Flexible
- 300/500V
Specifications
| Brand | Time |
|---|---|
| Pack quantity | 1 |
| Cable length | 10m |
| Colour | White |
| Number of pieces | 1 |
| Maximum operating temperature | 90°C |
| Minimum operating temperature | -15°C |
| Flexible | Flexible |
| Shield material | Unshielded |
| Sheath properties | Standard |
| Cable code | 3093Y |
| Number of cores | 3 |
| Outer sheath material | PVC |
| Conductor area | 2.5mm² |
| Amp rating | 25A |
| Number of wire strands | 45 |
| Product code | 5055268786994 |
